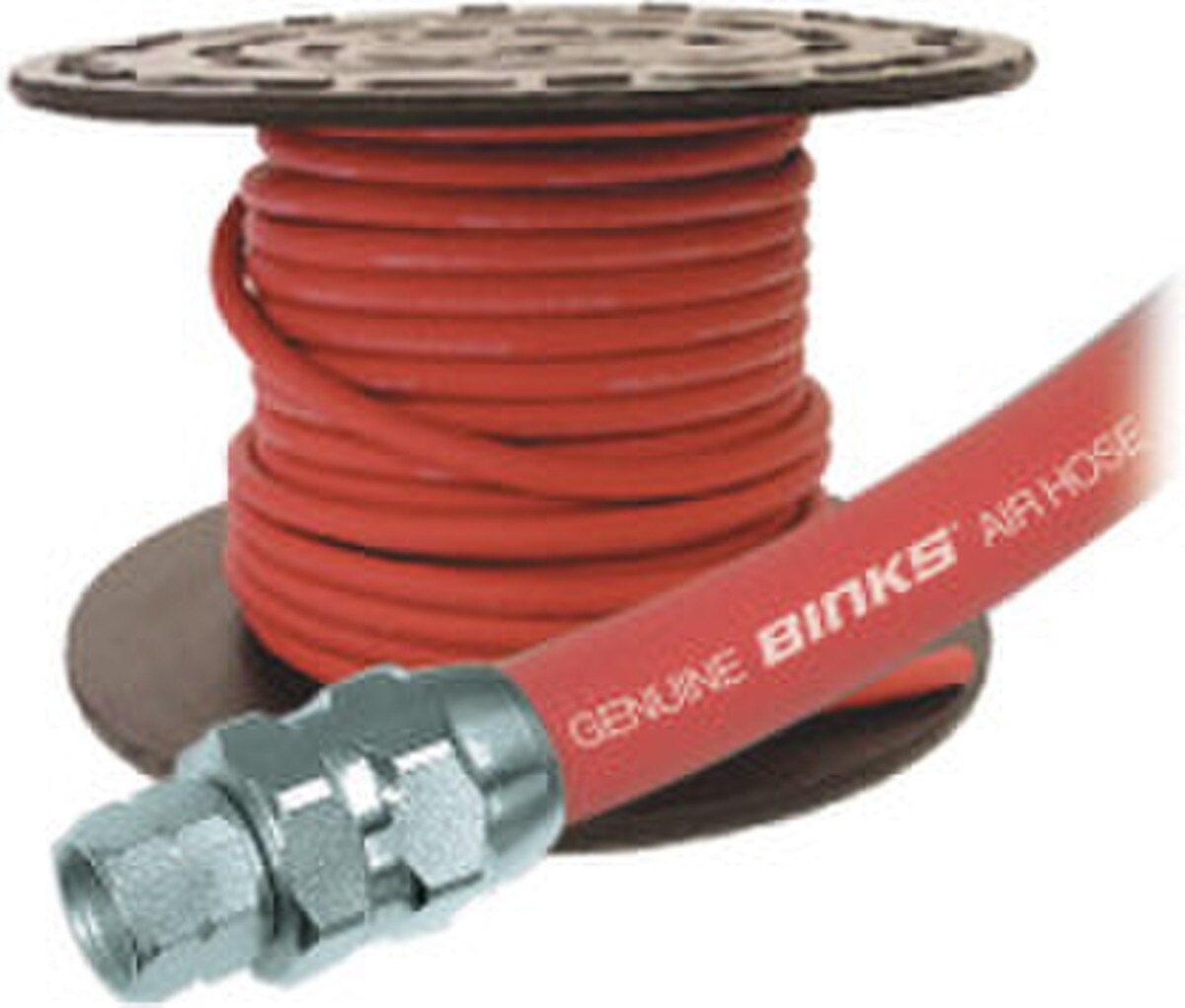

Air hose, bulk, 1/4" ID, per ft

Recommended Use

Premium spray finishing air hose. Class B oil resistance. Designed for all finishing operations as well as rugged industrial applications, especially applications requiring lubricants in the airline supply or where oil and grease are present in the environment. Excellent for use with water and water-based materials. Temperature range from –40°F to +200° F (max).

Tube

EPDM Class B oil resistance.

Reinforcement

High tensile strength spiral reinforcement. Specially designed for maximum flexibility (under pressure) and maximum coupling retention.

Cover

EPDM, red, smooth. Abrasion resistant. Oil Resistance.

Connections

1/4 in NPS connections are used. See air hose connections here. Most common hose size is 5/16" for air hose and 3/8" for fluid hose.

Available Literature

• Binks Hoses, Connections, and Assemblies
