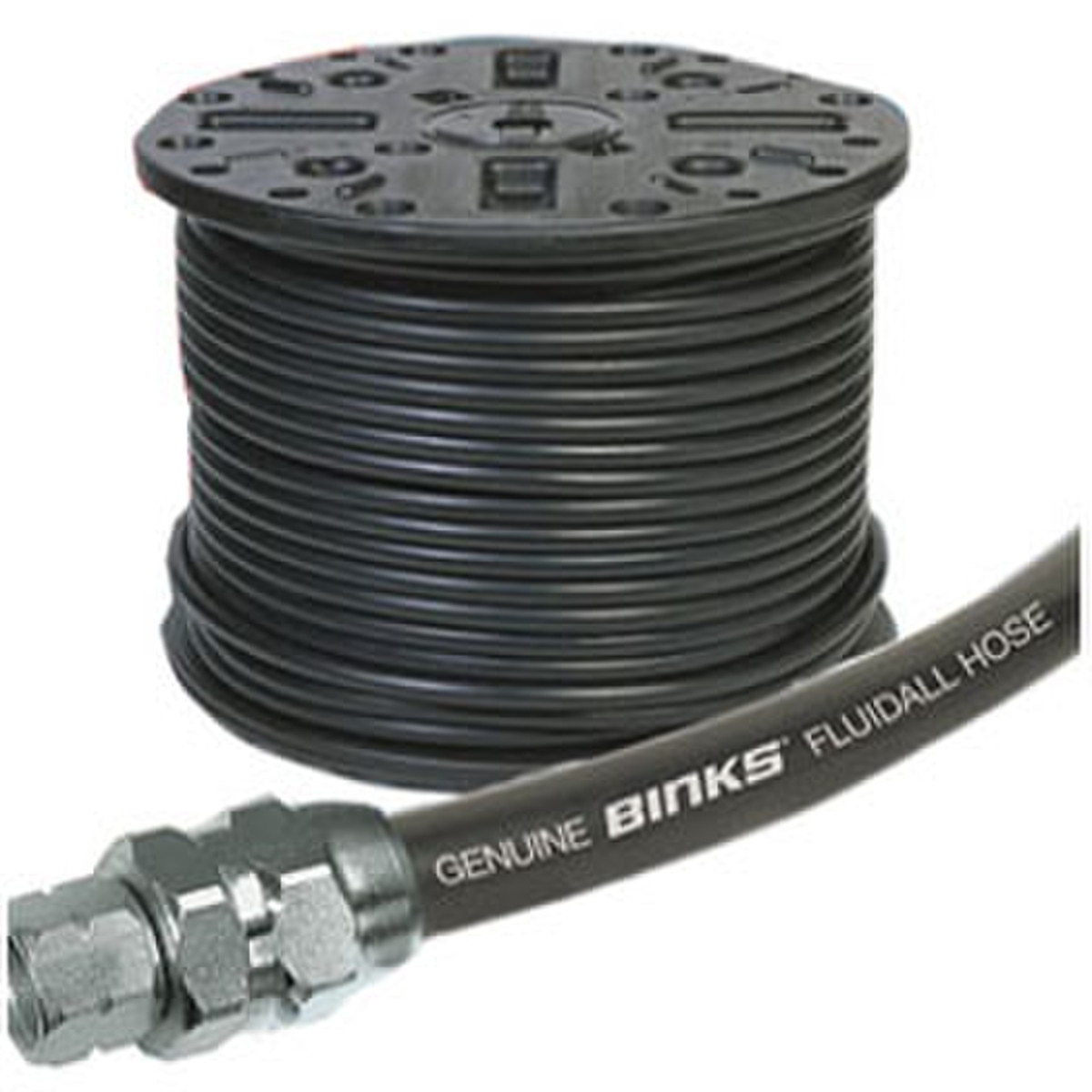

Fluid hose assembly, 3/8" x 50'

Recommended Use

Premium, versatile fluid hose, for finishing operations plus a wide range of fluid applications. Fluidall™ is ideal for resins and solvents contained in latices, epoxies, urethanes, alkyds, primers, acrylics, polyesters, silicones, bitumastic coatings, oil and water based paints, lacquers, alcohol and latex coatings. Temperature range from 0° F to +190°F (max).

Reinforcement

High tensile synthetic braid. Specially designed for maximum flexibility (under pressure) and maximum coupling retention.

Cover

Black, synthetic, smooth rubber. Class B – Oil Resistance.

Connections

3/8 in NPS or 1/2 in NPS connections are used. See fluid hose connections here. Most common hose size is 5/16" for air hose and 3/8" for fluid hose.

Available Literature

• Binks Hoses, Connections, and Assemblies
