Green Diamond Blast Media
Details

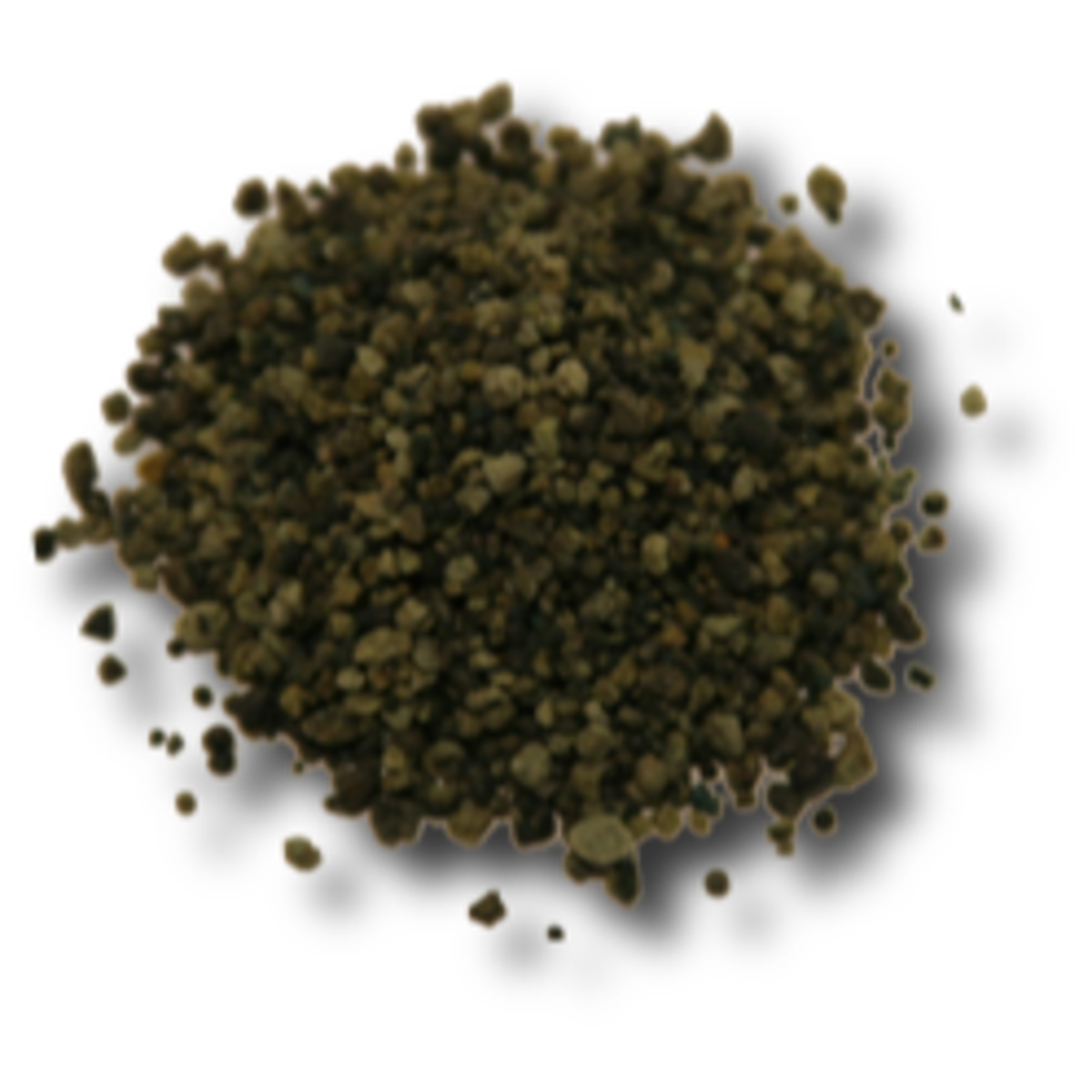

Green Diamond is a mineral slag that has sharp cutting edges, well graded and very clean, while providing superior cleaning rates, and a containment free surface for superior coating adhesion.
Free Silica Content
- Green Diamond Contains 0% Free Silica
Grades
- GD2 (8/16 mesh) for marine and utility cleaning
- GD3 (16/36 mesh) for all purpose blasting
- GD4 (20/50 mesh) for new steel blasting
- GD6 (30/50) for general cleaning
Packaging
- 50# bags
- 100# bags
- 3000# bulk bags
- 25 ton bulk loads
Profile
| Grade | Profile Range | Typical Profile |
|---|---|---|
| GD-6 30/50 | 1.5 - 2.0 mils | 1.6 mil |
| GD-4 20/50 | 2.0 - 2.6 mils | 2.3 mil |
| GD-3 16/36 | 2.5 - 3.0 mils | 2.8 mil |
| GD-2 8/16 | 3.5 - 4.5 mils | 4.0 mil |
| All values above based on mild steel blasting at 90-100 psig at the nozzle. | ||
Informational Video
Green Diamond/Copper Slag Comparison
- 1 TON of Copper Slag is 140 lbs per cubic ft (40% Less Material)
- 1 TON of Green Diamond is 100 lbs per cubic ft (40% More Material)
Available Literature
Product Information
Green Diamond vs. Coal Slag
Green Diamond vs. Copper Slag
Green Diamond vs. Crushed Glass
Green Diamond vs. Garnet
SDS
Material Properties
TTLC Study
Sieve Analysis
