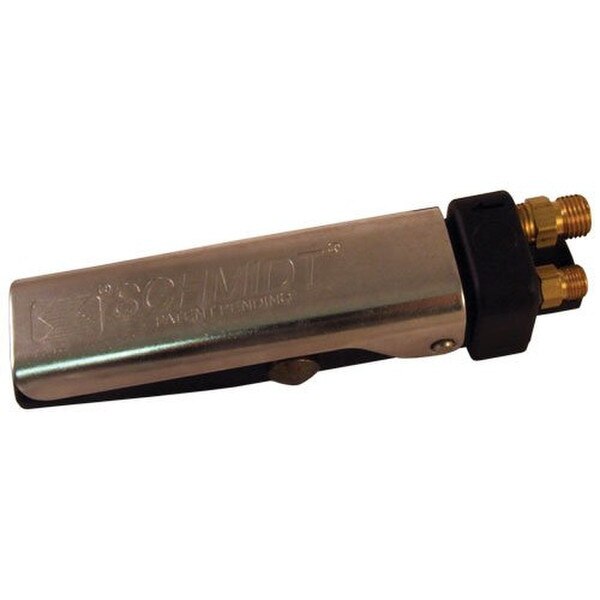

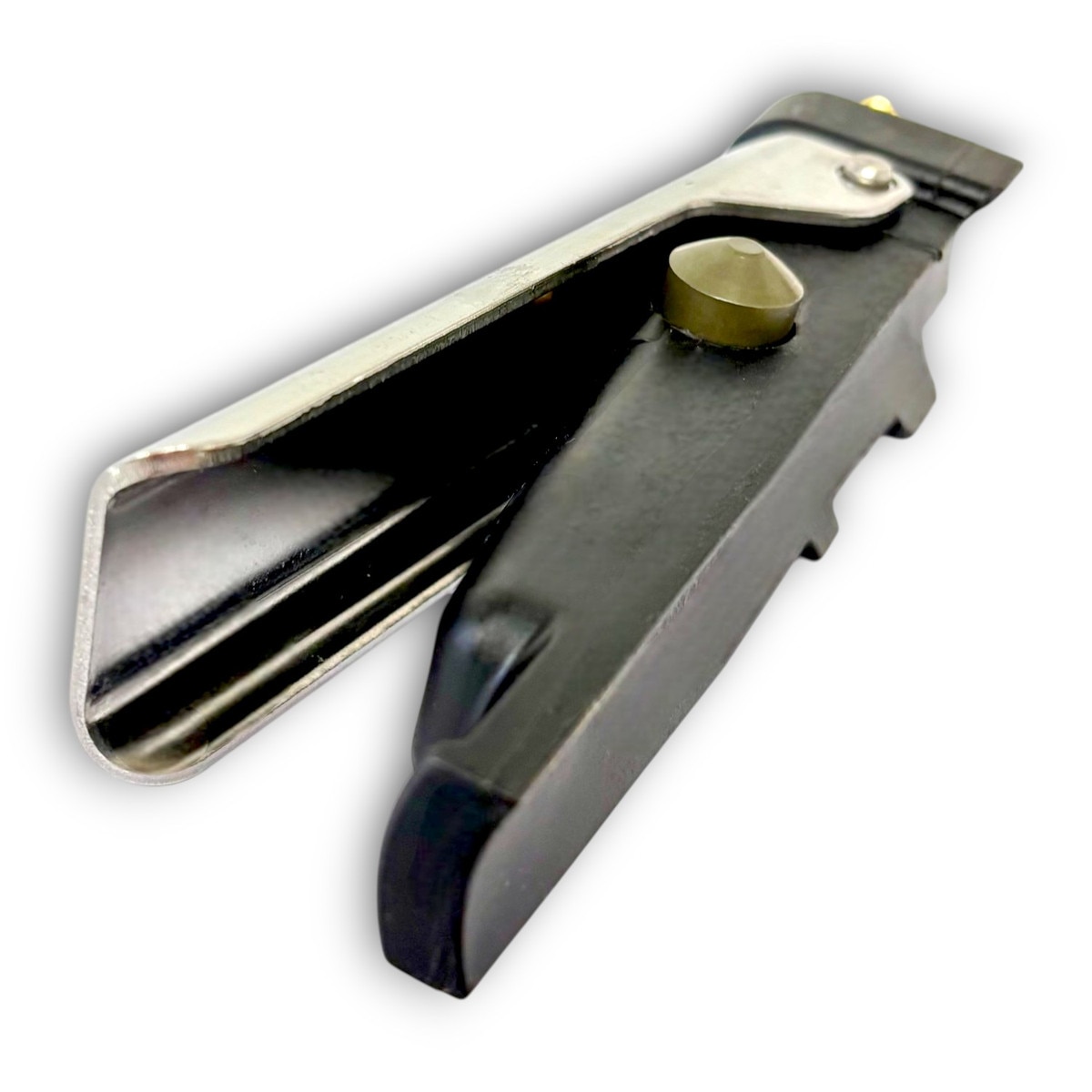

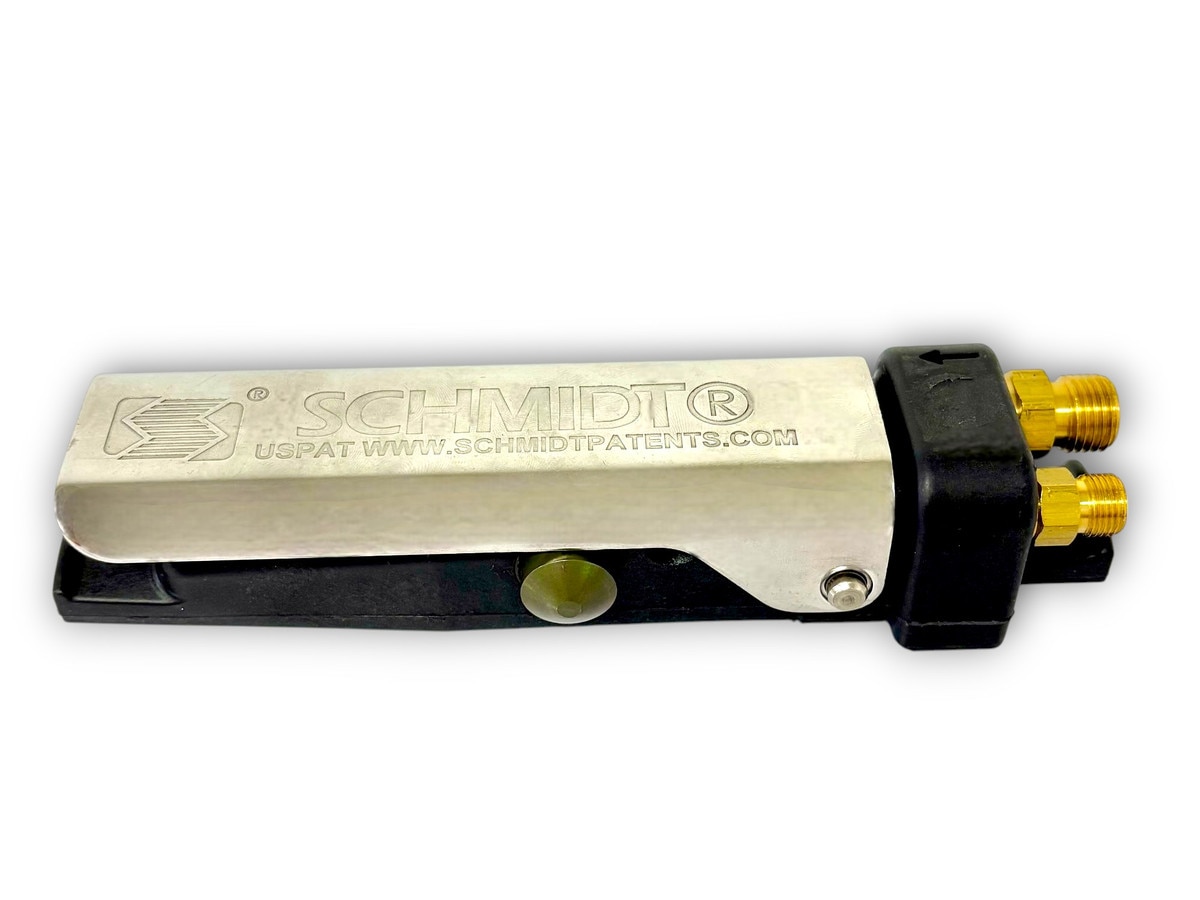

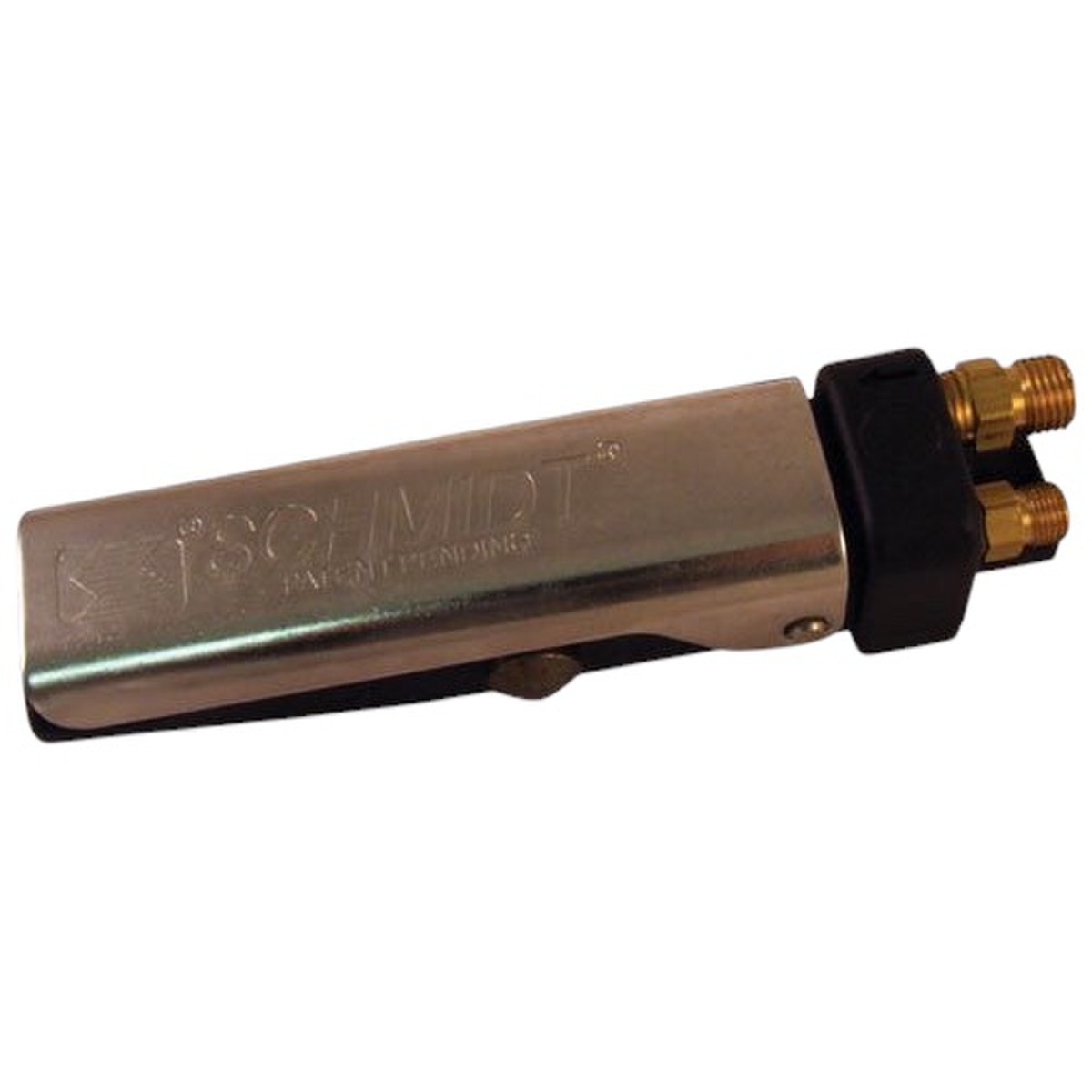

G2 Deadman Valve - Pneumatic

The G2 pneumatic deadman has all the features and benefits that an operator has been looking for.  The handle provides an increased response time of more than 30% of our other handles. Its redesigned air flow characteristics add air efficiency that improves signal times on blast hoses that are longer than 100 feet. To simplify connection to the twin line, the G2 pneumatic deadman control has an arrow indicating the correct port fitting for air supply connection and is also fitted with different size fittings to prevent the twin line and control from being misassembled. The spacing between the ports are wider to allow ease in connecting the twin line. Also the handle’s safety button has been made larger for easier operation and can be fitted for both right and left-handed operators. To reduce down time the hinge pin has been reversed to prevent dirt and debris from affecting the normally closed valve. One of the biggest benefits of the G2 is the lever design which provides 3 times less force to depress with greater length and width.

• Self cleaning feature extends cartridge life
• Long lever requires minimal force to depress; reducing operator fatigue
• Internal porting designed provide fast on/off response
• Large button for easy operation and configuration for left or right-handed use

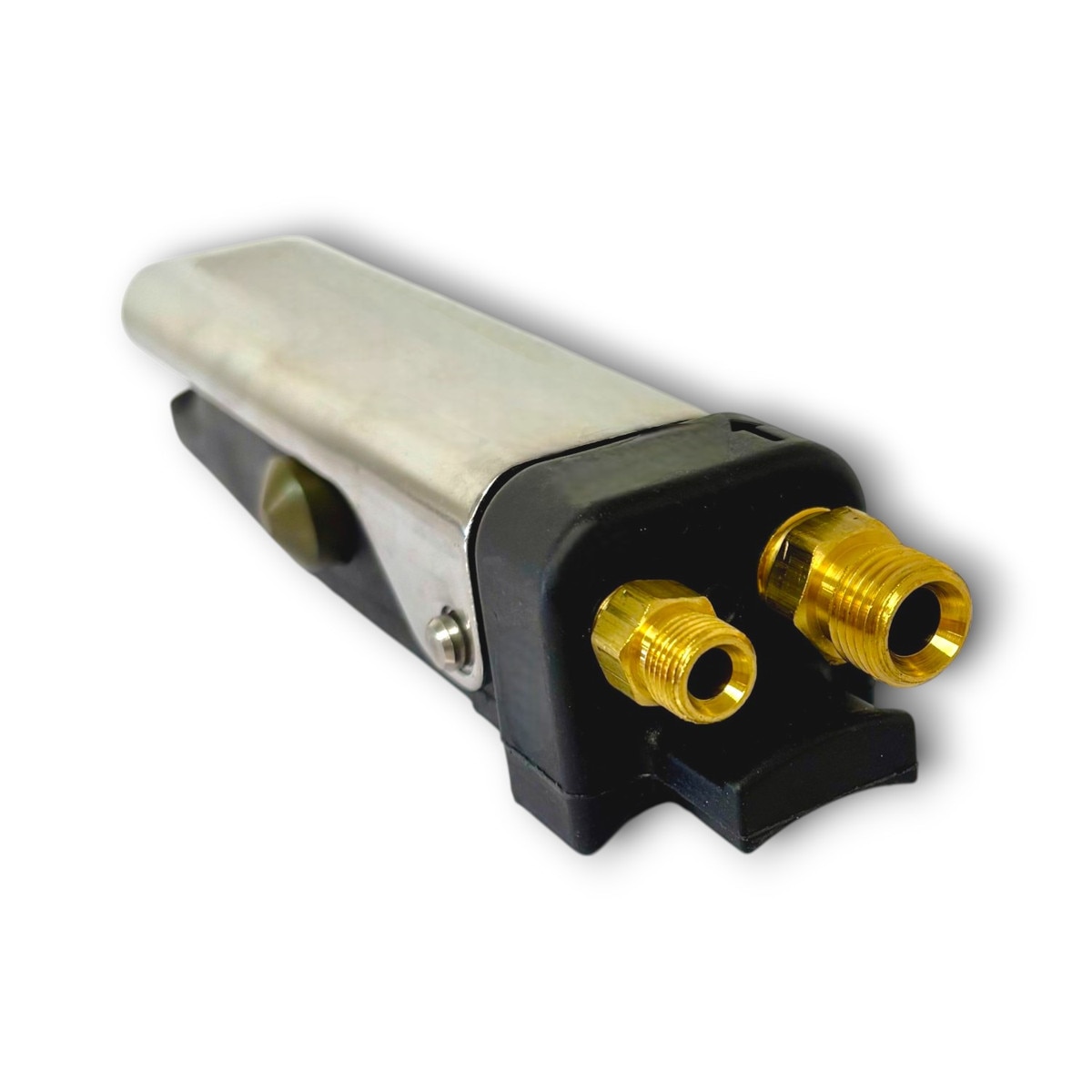

• Wide port spacing provides easy twinline connection

Available Literature

• Parts Breakdown
