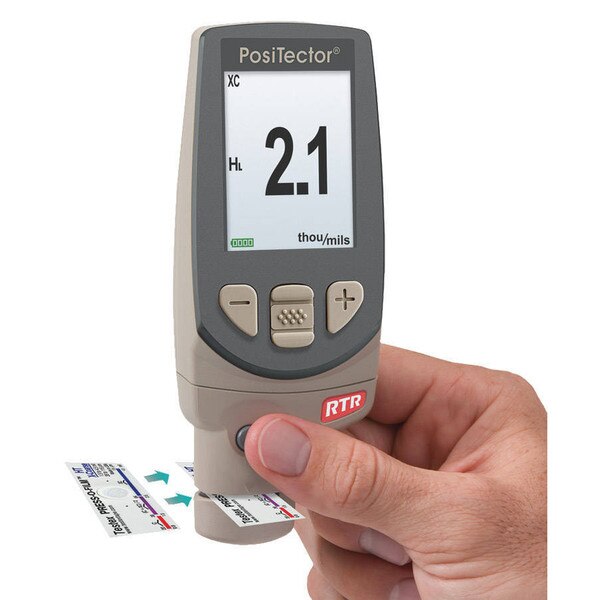

PosiTector RTR

Digital spring micrometers measure and record surface profile parameters using Testex Press-O-Film™ replica tape.

Simple

• Enhanced one-handed menu navigation
• Automatically subtracts the 50.8 μm (2 mil) incompressible film from all readings
• Minimizes inspector workload by reducing the number of replicas needed to ensure accuracy.
• See linearized peak height (HL)
• RESET feature instantly restores factory settings

Durable

• Solvent, acid, oil, water and dust resistant – weatherproof
• Rugged indoor/outdoor instrument – ideal for field or shop use
• Shock-absorbing, protective rubber holster with belt clip
• Two (2) year warranty on body AND probe

Accurate

• Produces a more accurate peak-to-valley height measurement. See linearized peak height (HL)
• Certificate of Calibration (Long Form) showing traceability to PTB included
• Conforms to national and international standards including ISO 8503-5, ASTM D4417 Method C, NACE RP0287 and SSPC-PA17

Versatile

• PosiTector body accepts all PosiTector RTR, SPG, 6000, 200, DPM, and UTG probes easily converting from a surface profile gage to a coating thickness gage, dew point meter or wall thickness gage
• Mils/Microns switchable
• Selectable display languages
• Flip display enables right-side-up viewing
• Uses alkaline or rechargeable batteries (built-in charger)

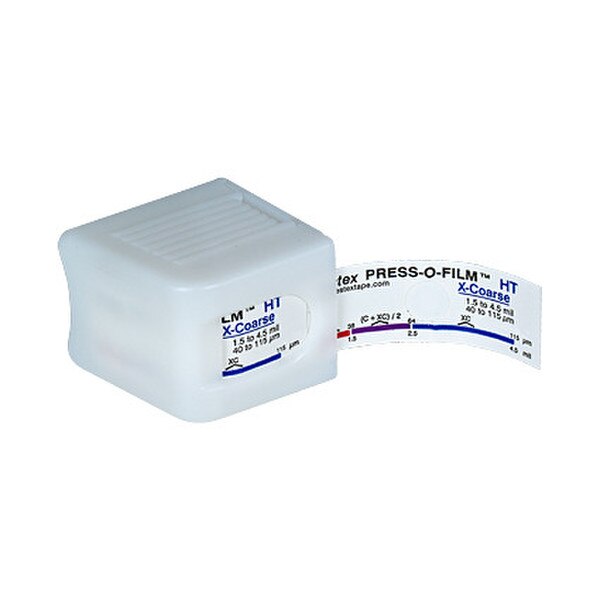

Optical Grade Press-O-Film Replica Tape

For improved optical resolution and to reduce optical artifacts, this special grade of replica tape is available for use with the PosiTector RTR-P. It provides better images, consistent peak density values and higher quality SDF surface data files than conventional Press-O-Film replica tape. It is available in both Coarse (C) and X-Coarse (XC).
