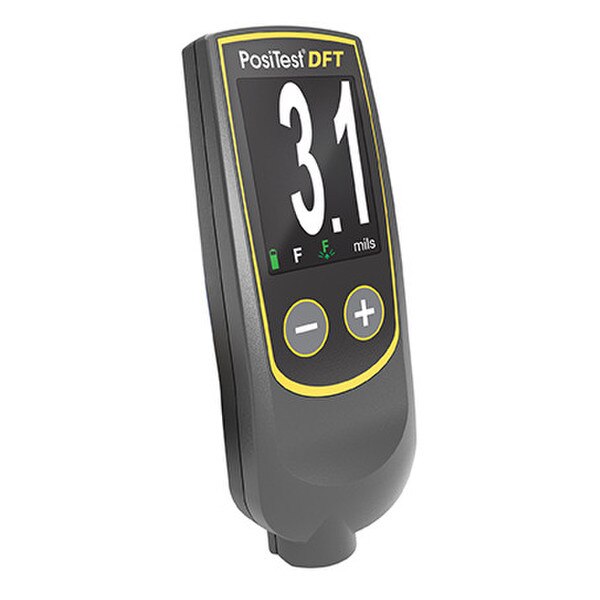

PosiTest DFT

The PosiTest DFT Coating Thickness Gage measures coatings on ALL metals. It is the economical choice that retains the uncompromising quality of DeFelsko coating thickness and inspection instruments.

Two Models

  • PosiTest DFT Ferrous: measures non-magnetic coatings on steel.
  • PosiTest DFT Combo: measures both non-magnetic coatings on steel AND non-conductive coatings on aluminum, brass, etc. Automatically recognizes the substrate and takes a measurement.

Ideal For

  • Powder Coaters
  • Paint Applicators
  • Coating Inspectors
  • Painting Contractors
  • Automotive Refinishers, Resellers, Dealerships & Inspectors.
  • And more...

Gauge Features

  • Fast, repeatable measurements
  • No calibration required for most applications
  • ZERO feature for rough or curved surfaces
  • Flip Display for right-side-up viewing in any position.
  • Built-in wrist strap
  • Handy gauge RESET feature when no zero reference is available
  • Strong, wear resistant, ruby-tipped probe
  • Audible and visible measurement indication
  • V-groove in probe for positioning on cylindrical parts
  • Mils/Microns switchable
  • Basic instructions on the back of each gage
  • Each gauge Includes Certificate of Calibration traceable to NIST
  • 2-Year Warranty on gage and probe.

Gauge Comes Complete with:

  • built-in probe
  • wrist strap
  • plastic shims
  • hard shell storage case
  • AAA battery
  • instructions
  • certificate of calibration traceable to NIST.
  • two (2) year warranty.

Specifications

  • Measurement Range: 0-40 mils or 0-1000µm
  • Accuracy: ±(0.1 mils + 3%) or ±(2µm + 3%)
  • Size: 4 x 1.5 x 0.9 in. or 100 x 38 x 23 mm
  • Weight: 2.5 oz or 70 g

Available Literature

Product Information
Instructions Manual
