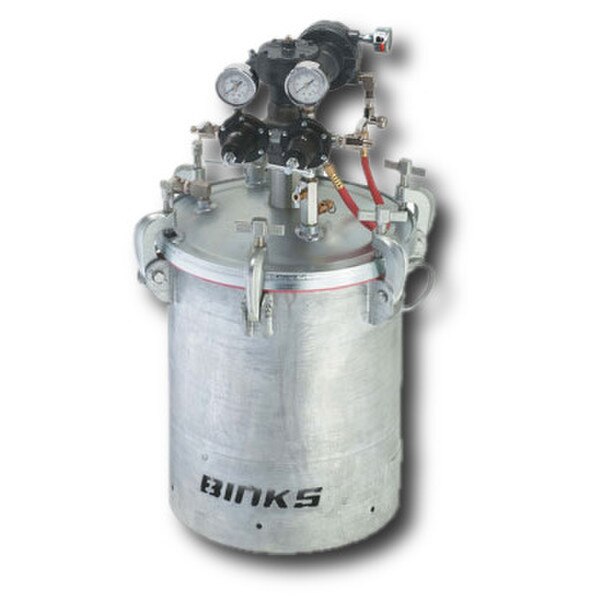

5 Gallon Pressure Tank Gear Reduced Agitator Ss 2 Regulators

ASME certified 5 gallon galvanized tank has an actual capacity of 9.8 gallons. Binks 5 gallon tanks accept standard and Imperial 5-gallon shipping pails.

Name: 5 Gallon Galvanized Part Number: 183G-5XX Series
Family: Galvanized Tanks
Type: Pressure Tank
Wetted Materials: Galvanized lid and tank shell
Air In: Air Inlet = 1/4" NPS
Fluid Out: Fluid Outlet = 3/8" NPS
Capacity: 9.8 Gallons - 183G-520
Fits Pail Size: 5 Gallon Pails
Regulation: Single, Double or Extra Sensitive
Regutator: None, Standard (Indirect), Optional (Reciprocating)
Liners: PTL-408-K20
Bottom Outlet: Bottom Outlet Conversion Kit Available order 183-3001
