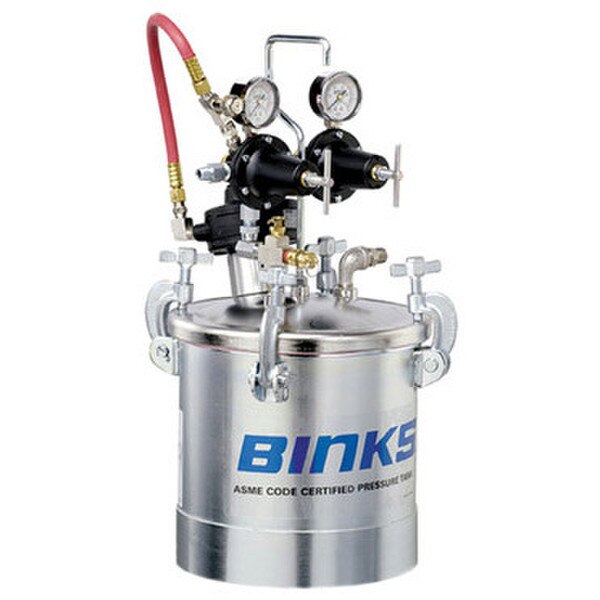

Pressure Tank Assy. (Dbl.

Ideal for waterborne coatings when used with a disposable tank liner. 300 grade stainless steel lid and all wetted parts in lid assembly including fluid tube, lid bushing, outlet elbow and fitting, agitator shaft with Zinc plated tank shell.

Name: PT ASME SS Lid/Zinc Shell
Part Number: 83Z Series
Family: PT ASME Code Tanks
Type: Pressure Tank
Max Output Pressure: 80 PSI
Wetted Materials: Stainless Steel Lid, Wetted Lid parts, Zinc Plated tank shell
Air Inlet: 1/4" NPS
Fluid Outlet:  3/8" NPS
Capacity: 2.8 Gallons
Fits Pail Size: accepts one gallon pails
Regulation: Single or Double
Agitator: Direct Drive or None
Liners: PT-78-K10 or K60
Bottom Outlet: None

Available Literature

• Product Information
• Instructions Manual
