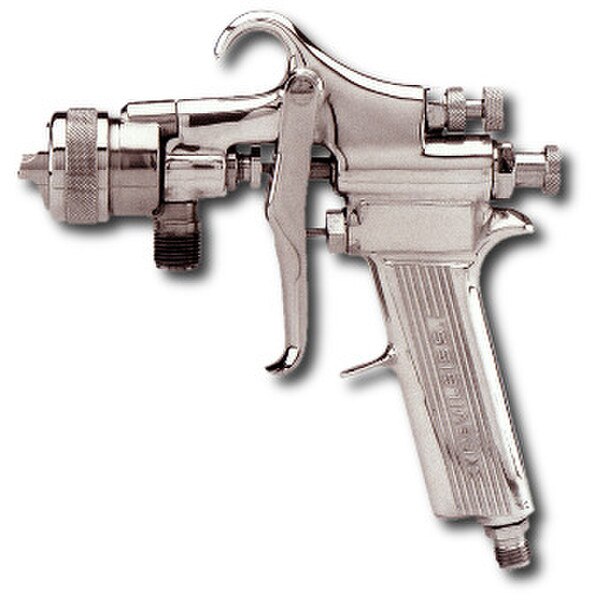

Mbc Spray Gun, 64Hdd

Combining a drop forged aluminum body with a forged removable spray head, the MBC-510 spray gun is ideal for applications that require maximum output and quick changeovers. Removable spray head allows for reduced downtime on nozzle combination changeovers. MBC spray guns have nickel-plated brass fluid passages and 400-grade stainless steel fluid tip and needle.

Name:  MBC Conventional
Model:  MBC-510-xxxxx (user selects, see models below)
Gun Category:  Conventional
Gun Type:  Manual
Fluid Passages: Nickel-plated brass
Fluid Inlet: 3/8" NPS (M)
Air Inlet: 1/4" NPS (M)
Weight: 27 oz (768 gr) with air cap and ring
Construction: Drop forged aluminum
Feed Type: Pressure feed, Suction feed (EX)
Gun Repair Kit: KK-4058-1

Available Literature

• Instructions Manual
