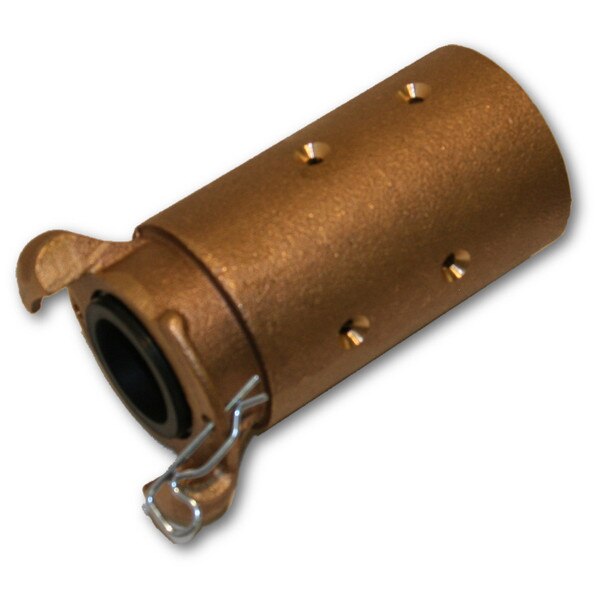

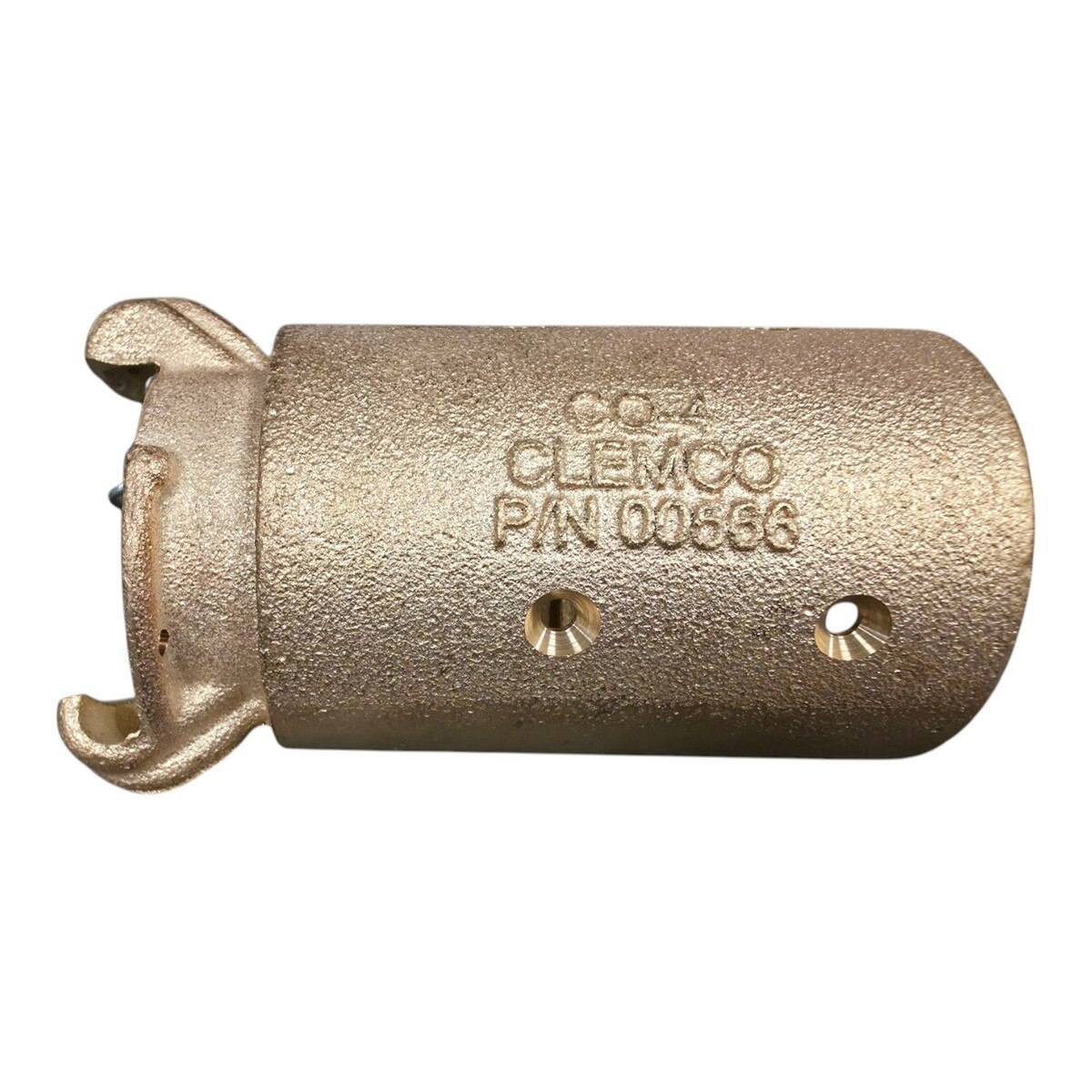

Coupling, CQ-4, brass, for 2-3/8" OD hose

$90.00
24 in stock!
Item
CC 00566

Clemco couplings are made from top grade brass and aluminum materials in addition to super tough nylon. Universal quarter-turn locking lucks permit interconnection of different size hose couplings from 1/2" to 1-1/4" if desired. Coupling shanks are extra long for added support and holding strength. Screw holes are countersunk to accept No. 10 x 1/2" wood screws. (NOTE: Improper screw size could result in puncture of blast hose tube.)

Nylon couplings have the added feature of a steel safety spring that automatically engages into two sets of holes in the coupling flanges to add back-up security. Safety wire must be added to brass and aluminum couplings to prevent accidental uncoupling.

Resources
More Information
MPN 00566
Other Part Number CQB00566
Manufacturer Clemco
