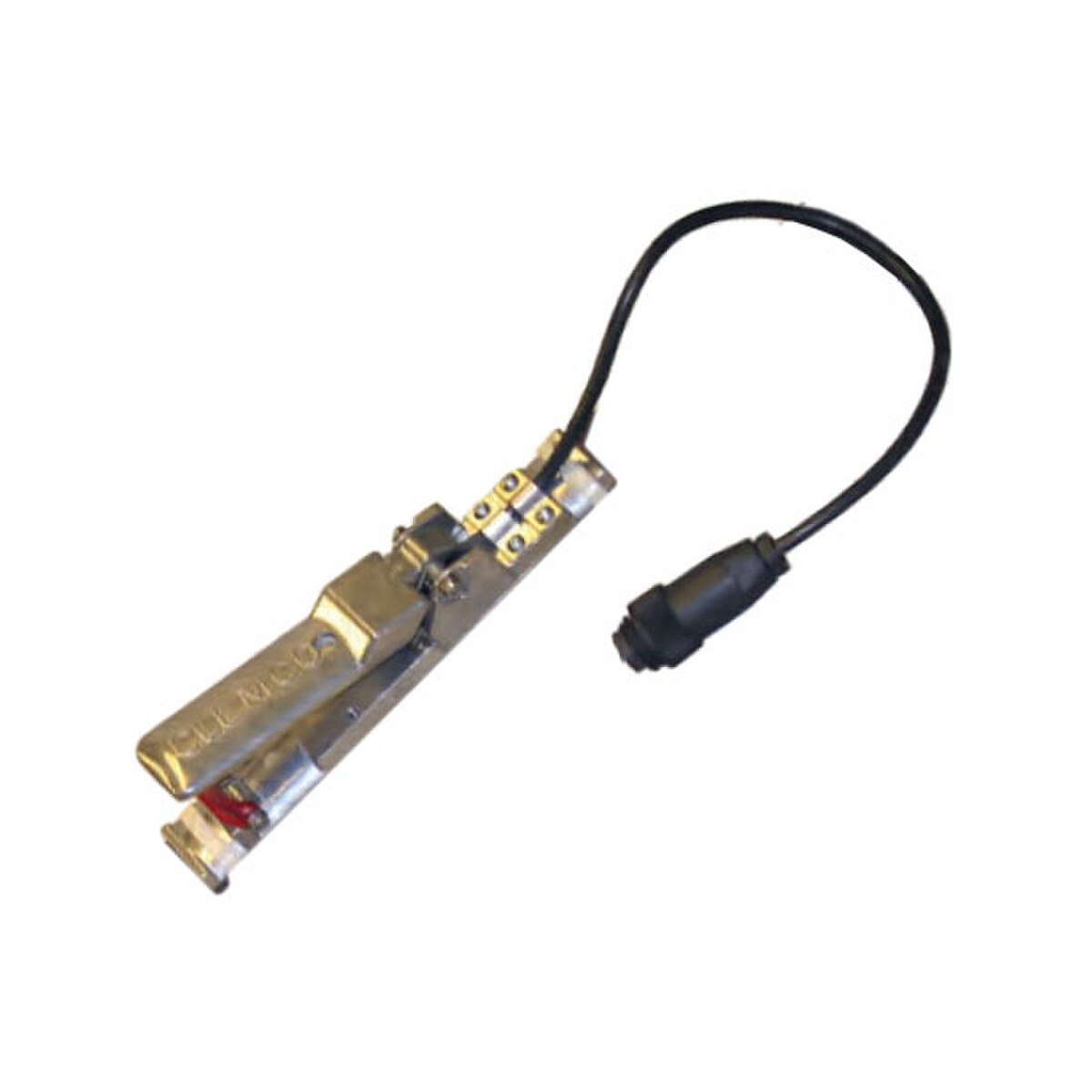

RLX Remote Control Handle Assembly, electric, twist-lock

$201.90
4 in stock!
Item
CC 05801

Control handle for remote activation and deactivation of an abrasive blast machine. Fail-to-safe system stops blasting if operator drops or loses control of the handle. For use with Clemco remote control systems only.

OSHA regulations require remote controls on all abrasive blast machines. Electric remote control systems operate efficiently at distances up to 500 feet. For distances greater than 300 feet, special remote control cable is required.

Requirements for Operation
These items are required but are not included with the handle:

  • Electric cord
  • Blast machine fitted with Clemco remote control valves
  • Power source

Description of Operation
Pressing the remote control handle activates the system and starts blasting; releasing the handle stops blasting. When the handle is released, a spring-loaded lever mechanism keeps the handle from accidentally activating the system.

Electric remote controls use an electric cord and micro-switch in place of the twinline hose and orifice used in pneumatic handles. Electric handles operate on 12 volts.

(NOTE: Remote control systems operate on 12-volt DC or 120-volt AC, but for safety, the power to the handle is always reduced to 12 volts.)

All Clemco remote control valves operate pneumatically. The electric signals from the remote control handle operate solenoids that, in turn, operate the pneumatic remote control system.

WARNING!
Never modify or substitute remote control parts. Parts from other manufacturers are NOT compatible with Clemco equipment.

Advantages - Electric

  • Meets OSHA requirement for remote control system
  • Fast response at distances up to 500 feet
  • Low-profile, threaded connectors secure neatly to hose
More Information
MPN 5801
Other Part Number RLX05801
Manufacturer Clemco
Breakdowns
Click on image to view parts.
