SpinBlast HD Tool, w/air-motor, for 18" to 48" pipe

Add to Quote Cart for pricing
Item
CT CIBSB636B

Ideal for I.D. pipe 18"-48".

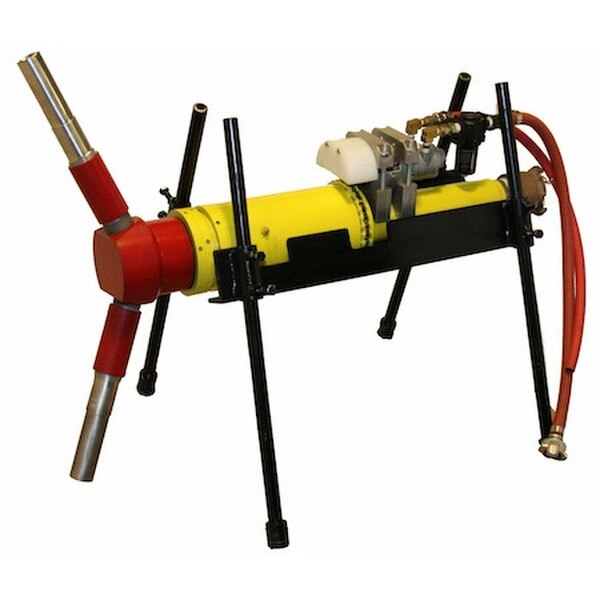

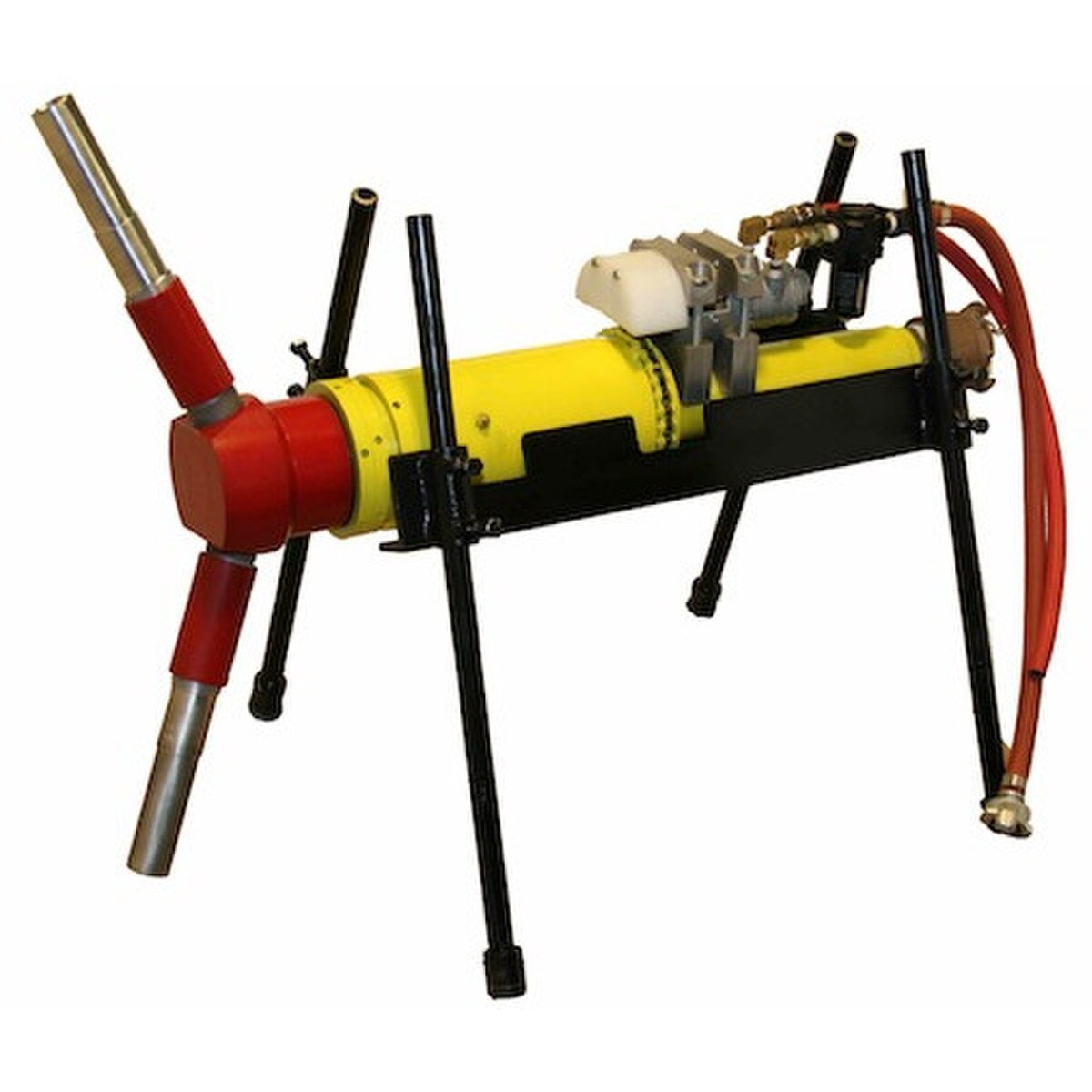

The Clemtex SB-636-B Heavy Duty Spinblast Tool is designed to abrasive blast clean the internal diameter of pipe. This unit includes a pneumatic driven motor to rotate the blast head, and an adjustable carriage designed to center the tool in the pipe to produce a uniform blast cleaned surface.

Production Rate

This tool is shipped with two (2) 1-1/4" threaded venturi blast nozzles. This unit can operate with nozzle sizes 1/4" to 5/8" I.D. The production rate varies depending on the degree of cleanliness required, surface condition, type of abrasive, nozzle size and blasting pressure. Contact a Clemtex Representative to determine an estimated production rate for your specific application.

Travel Rate

The speed (feet per minute) that this tool is pulled through a pipe depends on the diameter of pipe, degree of cleanliness required, surface condition, abrasive size, nozzle size and blasting pressure. A platform or structural support for the wheels of the Spinblast tool to drive on must be provided at the exit/entrance of the pipe to support the weight of the tool. Do not manually lift the tool out of the exit point of the pipe while blasting.

Blast Head Rotating Speed

A variable speed electric motor turns the blast head of the tool. The motor should be adjusted to 40-60 RPM to produce an even blasted surface. For very large diameter pipe, a slower rotational speed is desired for the best performance. For this reason, the electric motor is preferred in large-diameter blasting situations.

Blast Hose Connection

The blast hose connection on the tool is 2" NPS-M. A standard 2" threaded blast hose fitting (CFB00555) is required if the Spinblast tool in not attached to a pipe lance. The blast hose or pipe lance feeding the tool must be a minimum of 1-1/4" I.D. Smaller diameter hose or pipe lances could lead to premature wear on the Spinblast tool.

Instructional Video

SpinBlast HD with Electric Motor



More Information
MPN CIBSB636B
Other Part Number CIBSB636B
Manufacturer Clemtex
