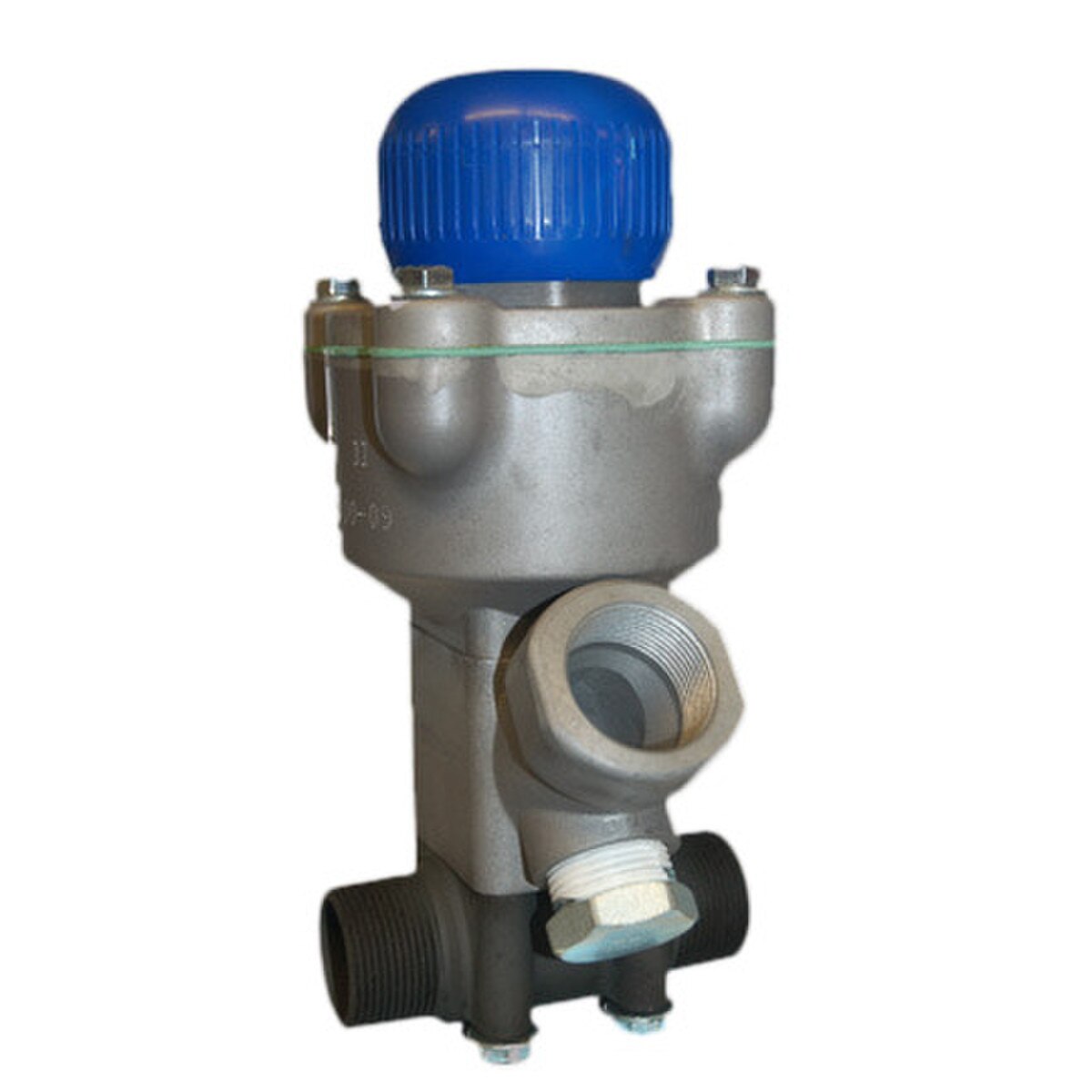

Thompson Valve II, TC 1-1/4"

$1,265.44
Contact us for lead time
Item
SM 2152-007

The TVII is a normally closed, self sealing, abrasive metering valve with instant, smooth response to either pneumatic or electric deadman controls.  This fail-safe valve shuts off abrasive flow to the nozzle and seals the tank at the same instant.  The clean-out feature provides a quick and easy way to clear an obstruction from the metering sleeve.  The TVII is ideal for multiple outlet units and is easily adaptable to most existing blasting systems.

  • Bolt-on cap provides easy access to piston and seal
  • Anti-vibration disc standard to prevent knob from moving during transit
  • Triple plunger seals prevent media from entering piston chamber and extend valve life
  • Seat placed in body allows for easy removal during servicing
  • Modular components align accurately to ensure proper assembly
  • Breather vents located under the knob prevent dust from entering piston chamber
  • Spring design provides long life
  • O-ring on sleeve prevents dust migration
  • Clean-out port placed directly under inlet to provide easy removal of dirt or debris
  • Alternative sleeves available for particular abrasives and applications


Available Literature

More Information
MPN 2152-007
Other Part Number 2152007
Manufacturer Schmidt
